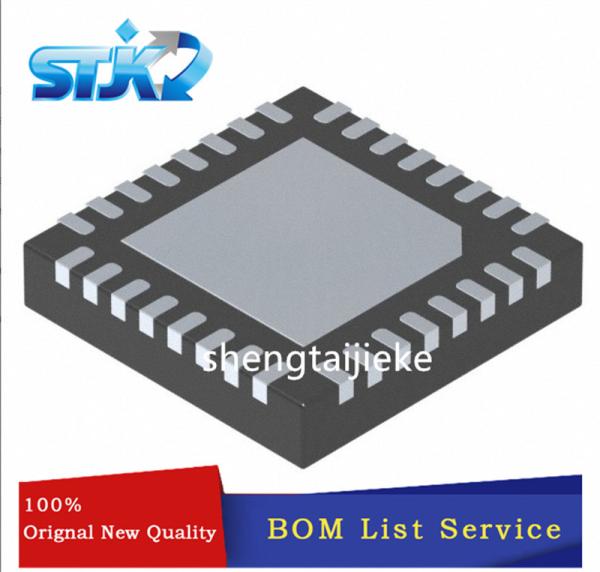

LTC3786EUD#TRPBF SEPIC Positive Regulator Step-Up Step-Down DC-DC Controller For Current Limit

PRODUCT DESCRIPTION

The LTC®3786 is a high performance synchronous boost converter controller that drives all N-channel power MOSFETs. Synchronous rectification increases efficiency, reduces power losses and eases thermal requirements, allowing the LTC3786 to be used in high power boost applications.

A 4.5V to 38V input supply range encompasses a wide range of system architectures and battery chemistries. When biased from the output of the boost converter or another auxiliary supply, the LTC3786 can operate from an input supply as low as 2.5V after start-up.

The 55µA no-load quiescent current extends operating run time in battery-powered systems. The operating frequency can be set for a 50kHz to 900kHz range or synchronized to an external clock using the internal PLL.

The LTC3786 also features a precision 1.2V reference and a power good output indicator. The SS pin ramps the output voltage during start-up. The PLLIN/MODE pin selects among Burst Mode® operation, pulse-skipping mode or continuous inductor current mode at light loads.

PRODUCT PROPERTIES

STJK(HK) ELECTRONICS CO.,LIMITED is an professional Electronic Components distributor,more than 12 years wholesale and distributor enable us accumulated much experience in electronic components field;We sufficient stock of hard to find and obsolete electronic components, semiconductors, military components, switches, relays,sensors,circuit protection and hard drives. The first-level agent of many electronic components brand and original factories, complete categories, stable supply,Lowest price,all chips can be traced back to the origin.

STJK(HK) has always been customer-driven and quality focused. Continuous improvement and ongoing statistical analysis of processes have always been integral to our approach to business. Our Goal: quality first, reputation first, service first, customers first. Be your reliable supplier in China is our pursue.

As an Independent Distributor,STJK(HK) ELECTRONICS CO.,LIMITED is not affiliated with the manufacturers of the products it sells except as expressly noted otherwise.Any and all trademark rights associated with the manufacturers' names and products are owned by the respective manufacturers.
